Dominate the trails with the unmatched performance of a 976cc V-Twin DOHC engine, engineered for serious power and durability. The liquid-cooled 4-stroke design keeps temperatures in check even during the most demanding rides, while DELPHI Electronic Fuel Injection (EFI) guarantees precise fuel delivery and instant throttle response. Pumping out a commanding 85 horsepower at 6500 RPM and a massive 74 ft-lbs of torque at 5500 RPM, this engine delivers relentless power and acceleration. With a 10.5:1 compression ratio, it achieves superior combustion efficiency for maximum output and performance on any terrain.
Aodes Canada

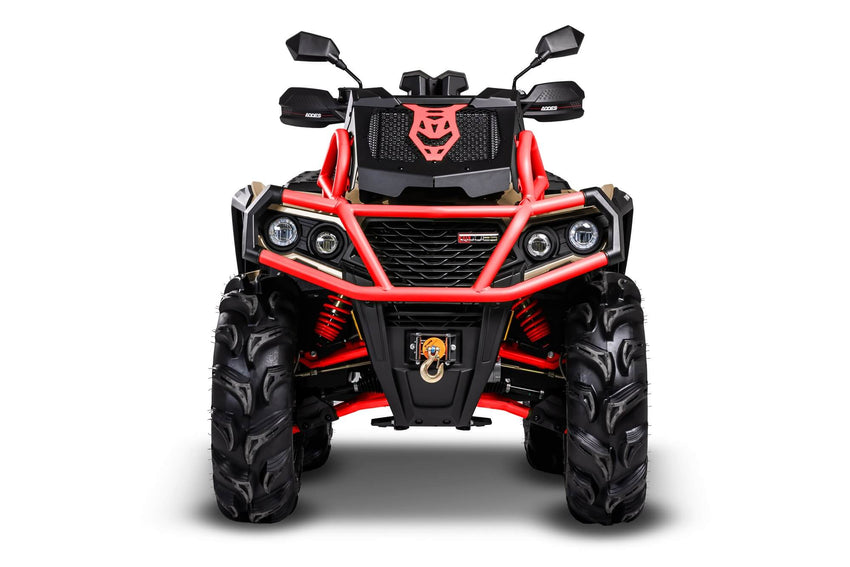

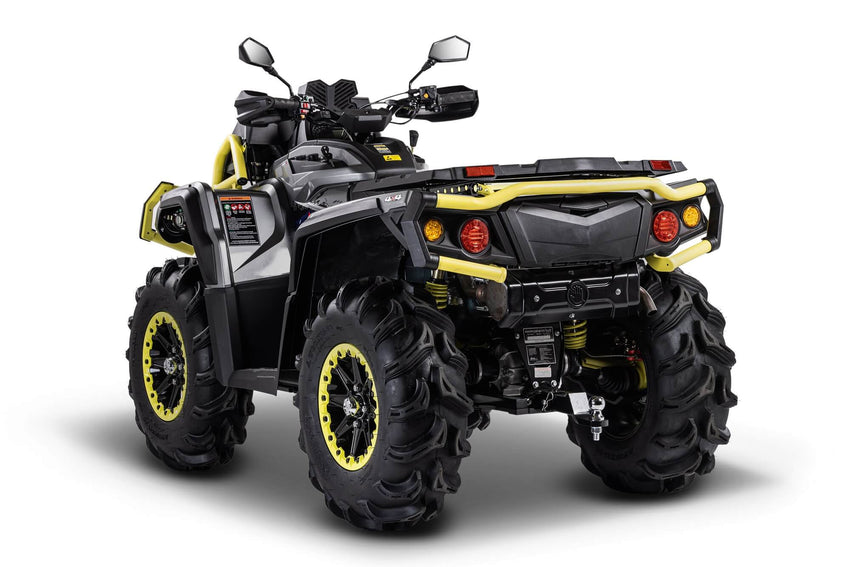

PATHCROSS 1000 S MUD PRO
Sale price
$16,899.00
COLORS

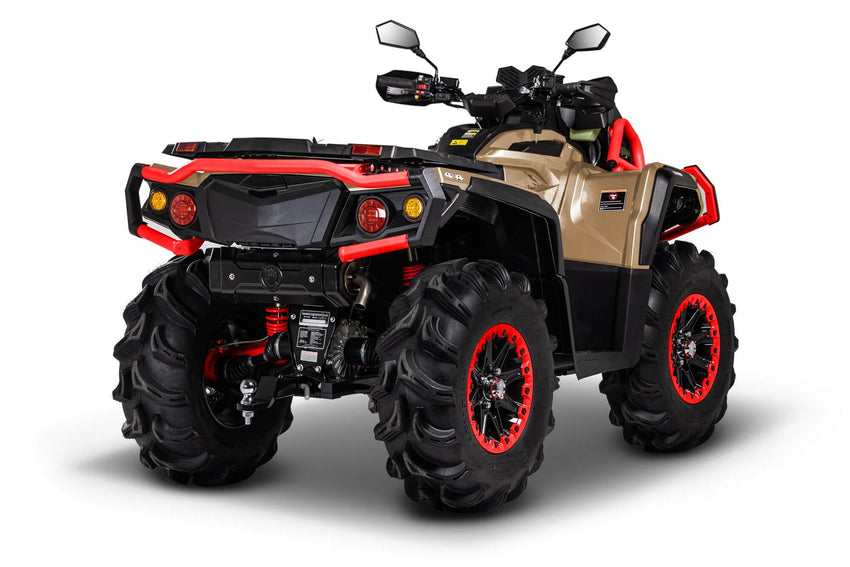

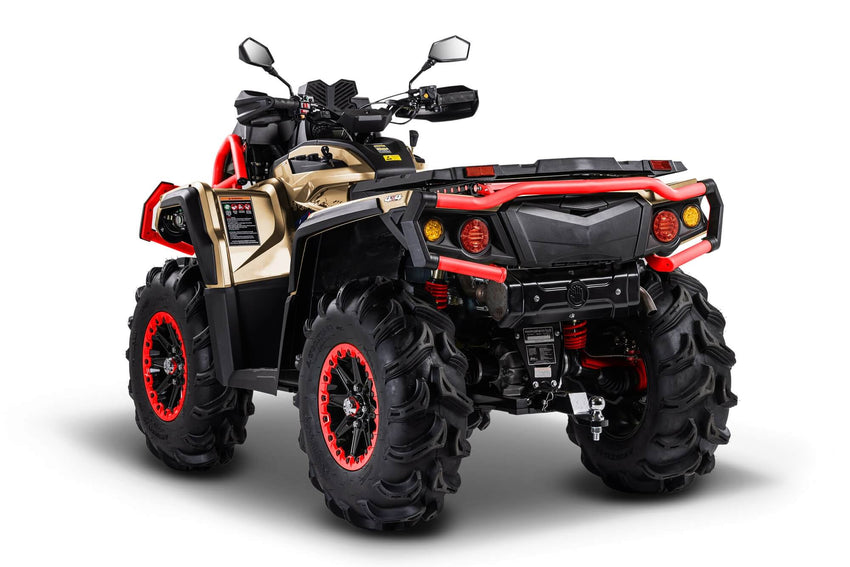

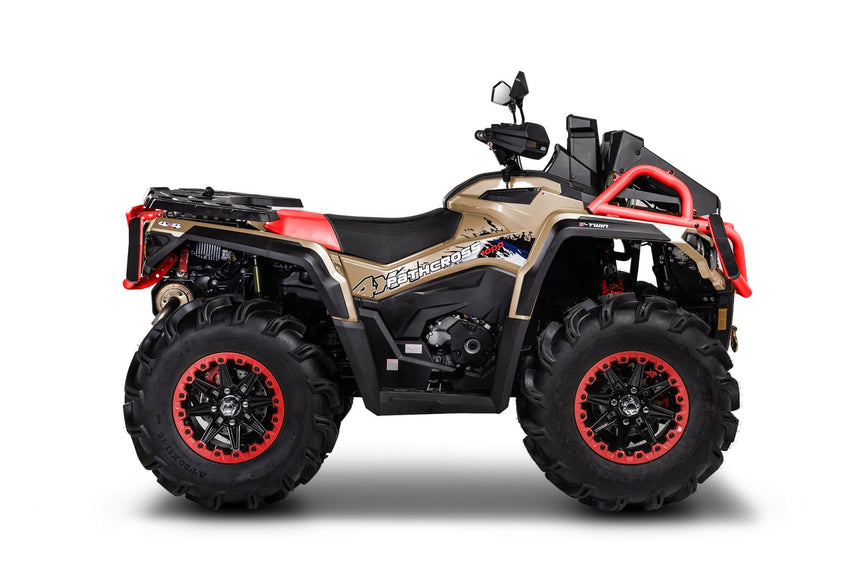

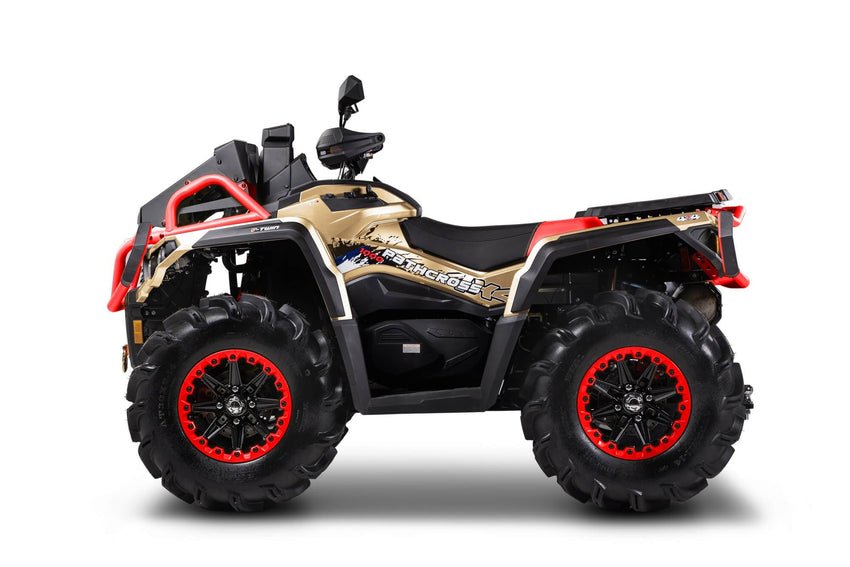

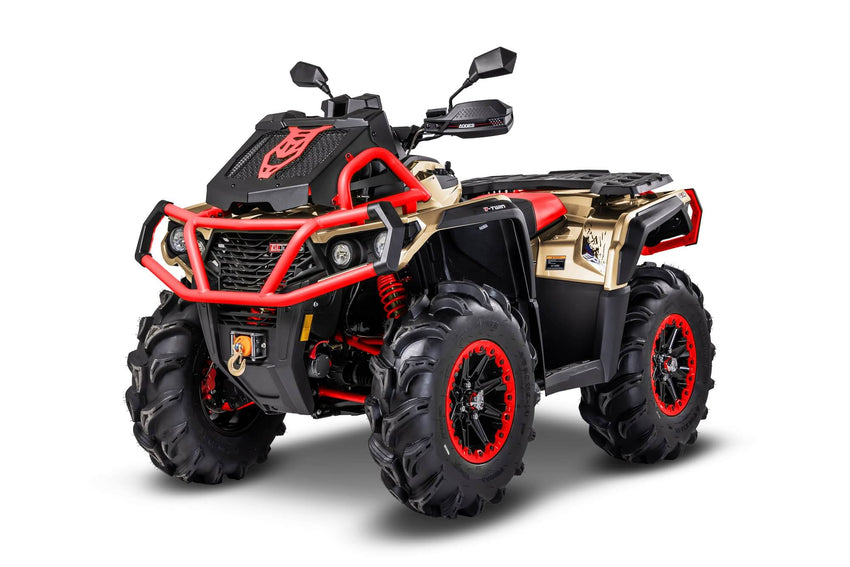

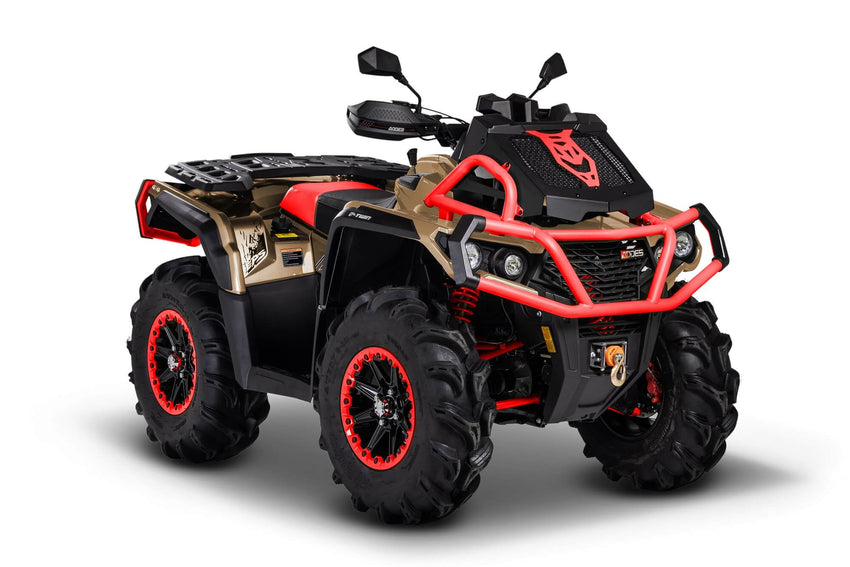

Gold / Red

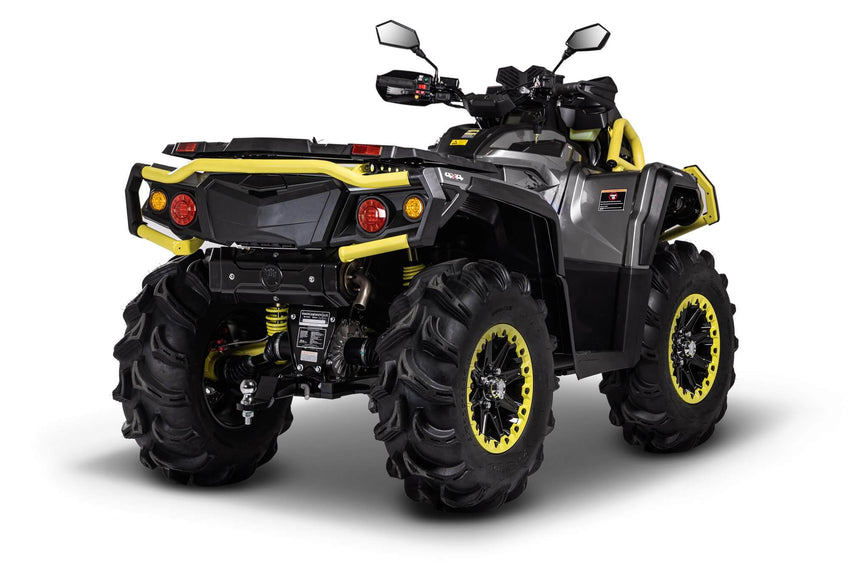

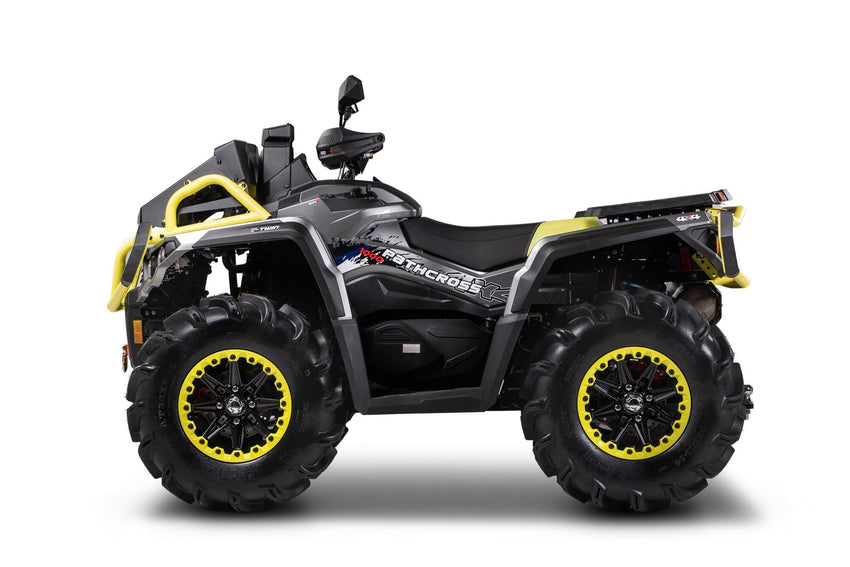

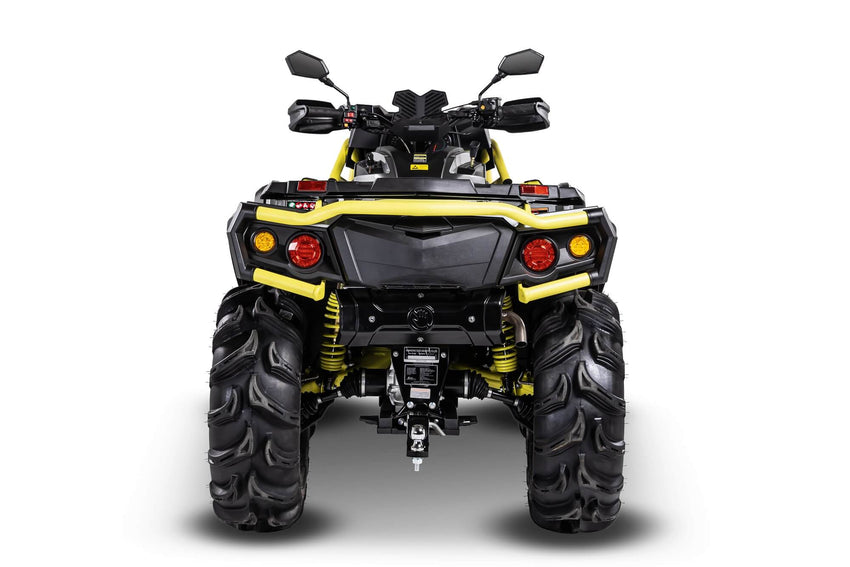

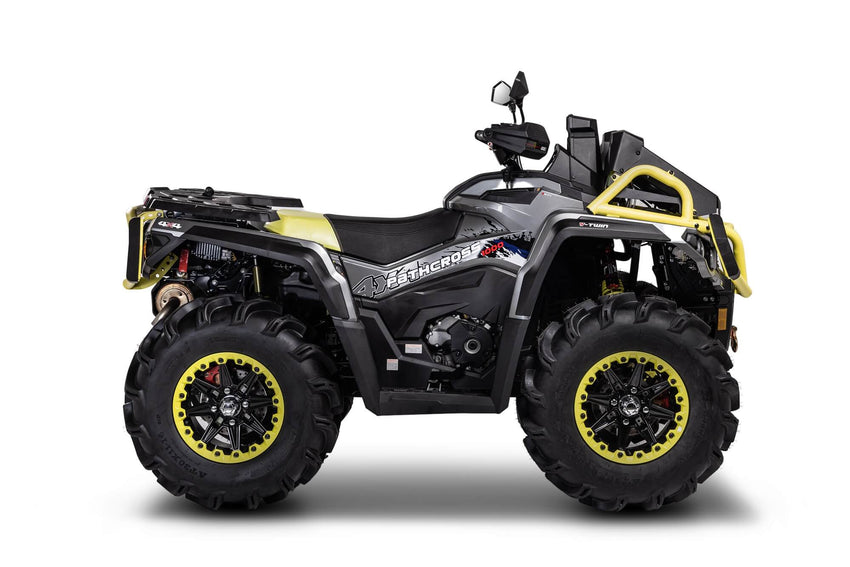

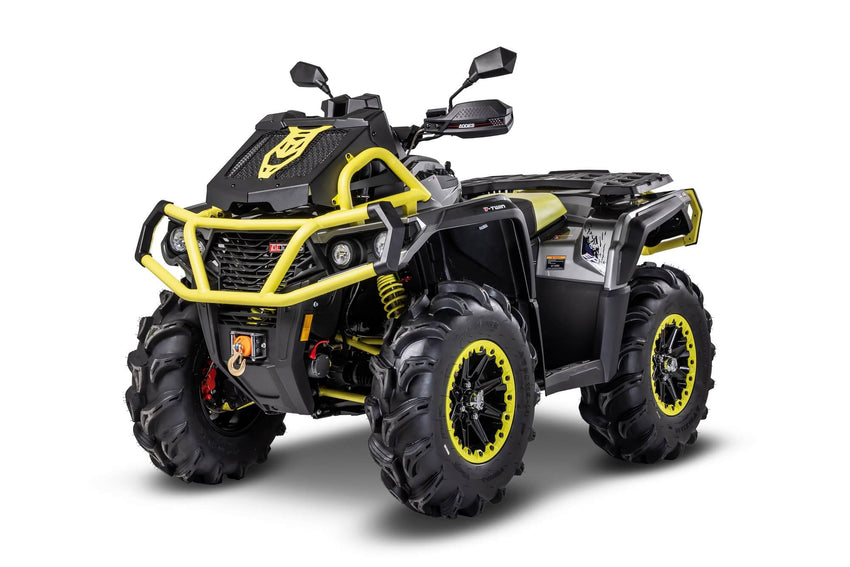

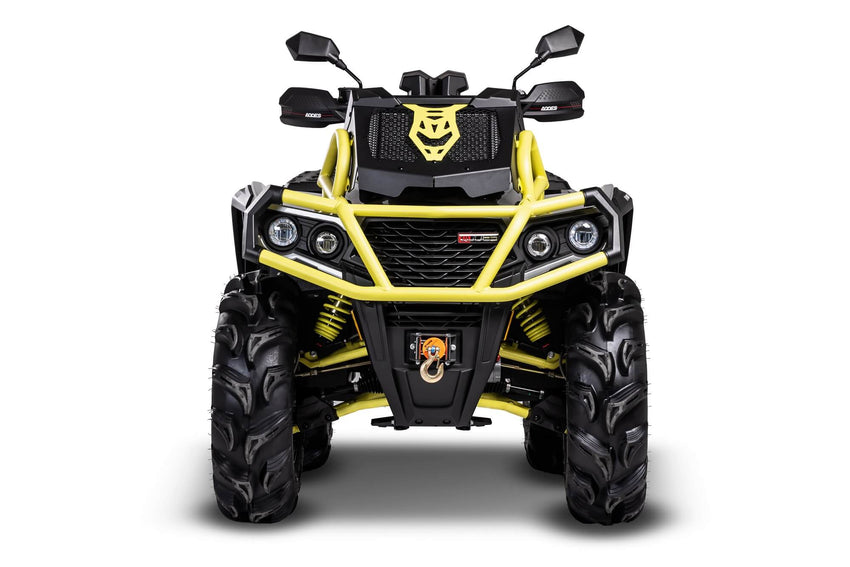

Grey / Gold
ENGINE
- 976cc V-Twin Cylinder DOHC
- Liquid Cooled 4-Stroke
- Maximum Power: 85.4hp
- Maximum Torque: 74.5ft lb
- DELPHI Electronic Fuel Injection (EFI)
TRANSMISSION
- CVTECH Clutch System
- Selectable 2WD-4WD-4WD Lock
- Front Locking Differential
SUSPENSION
- Independent Dual A-Arm Front & Rear
- Adjustable Coil Over Spring Rate
- 18 Way Adjustable Rebound/ Compression Gas Coil Over Reservoir Bypass Front & Rear Shocks
STEERING
- 3 Mode Speed Adjustable Electric Power Steering (EPS)
WHEELS
- 14 inch Aluminum Alloy Wheels
- 30×9-R14 Front
- 30x11-R14 Rear
- Front/ Rear Duel Vented Disk Brakes With Hydraulic 2 Piston Calipers
DIMENTIONS
- Overall Vehicle Dimensions LxWxH: 90.4in X 49in X 52.5in
- Curb Weight: 1003lb
- Gross Vehicle Weight:1263lb
- Wheel Base: 53in
- Tire Track Width: 40in
- Minimum Ground Clearance: 13in
CAPACITY
- Fuel Capacity: 22L
- Rack Capacity: 75lbs Front/ 150lbs Rear
- Towing Capacity: 737lbs
- Passenger Capacity: 1 Person
Download Full Brochure
*Prices shown exclude taxes, registration, and accessories. Freight: $750 & Dealer Prep (PDI): $250 are extra. Images for reference; accessories sold separately. Specs and colors may vary.
Over $5800 in added extras!
The following "No Charge" extras come standard
1. Aluminum Beadlock Rims $1800
2. 18-way adjustable gas shocks $1800
3. LED RGB light bar $550
4. 3500lb Winch $500
5. Front and rear bumpers $500
6. Handguards and side mirrors $120
7. Trailer hitch $150
8. Automotive grade paint $400
Forge your own path through any terrain with the Pathcross 1000 PRO-S. This purpose built MUD MONSTER allows you to wade deep into uncharted territories thanks to the factory installed radiator relocate and snorkel system. This lets the 976cc DHOC motor, and CVTECH CVT clutch system breathe without worry. Maintain comfort and control with the independent adjustable gas coilover suspension system, mud specific tires and adjustable EPS settings. No matter what the elements throw your way, you can count on AODES to get you there.
MORE POWER
BETTER HANDLING
Precision-Tuned Suspension for a Smooth & Controlled Ride
Designed for optimal handling and comfort, this independent dual A-arm suspension system ensures superior stability on rough terrain. Up front, YIT 18-way adjustable rebound/compression gas coil-over reservoir bypass shocks provide fine-tuned damping control, while the rear features YIT 18-way adjustable rebound gas coil-over shocks for a balanced and responsive ride.
With an adjustable coil-over spring rate, you can customize the suspension to match your riding style and terrain, delivering the perfect blend of comfort, control, and performance. Whether tackling uneven trails or cruising smoothly, this advanced suspension system keeps you in command.
All-New Digital Display
All within view!
The new digital touchscreen display allows you to adjust EPS settings (Soft, Med, Firm) and Tire Size, plus you can view maintenance reminders and fault codes, RPM, Vehicle speed, Fuel and Oil levels at a glance with ease!
